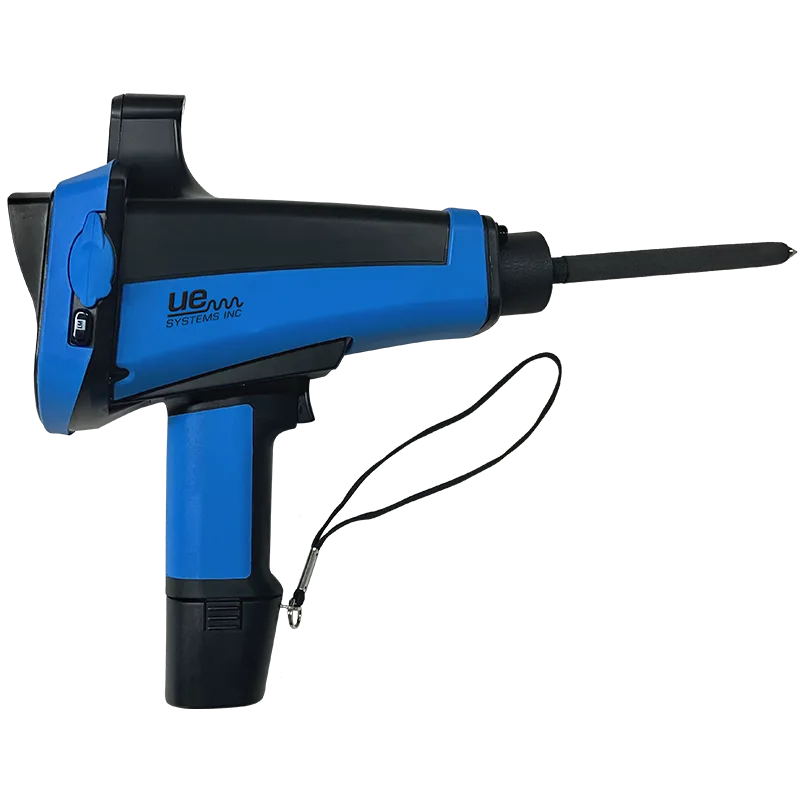

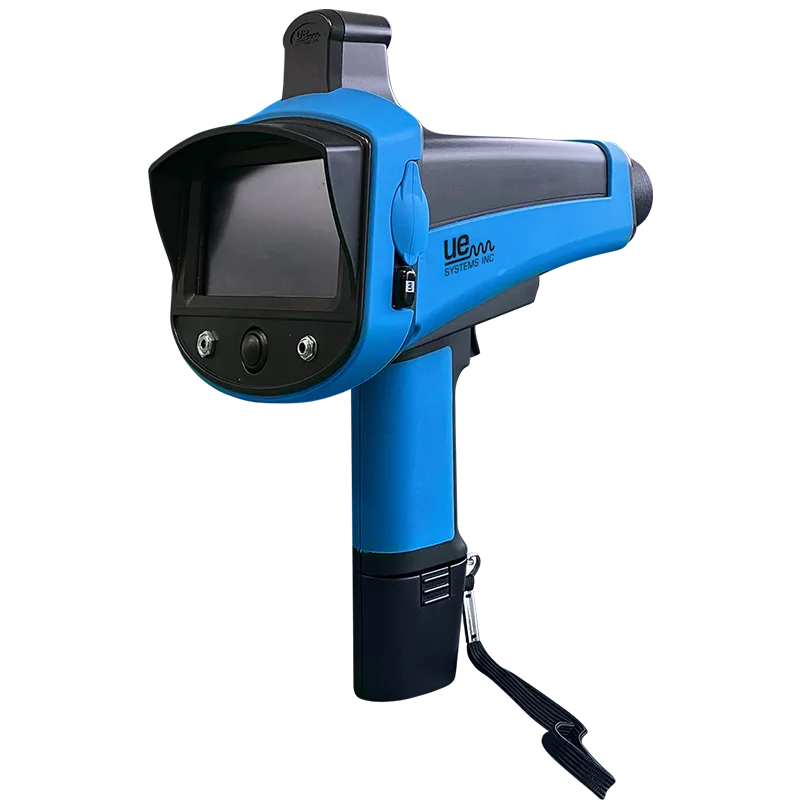

Ultraprobe 15000
The most elaborate and efficient ultrasound instrument for data collection, inspection and analysis
- Touch screen technology
- Integrated camera
- Sound recordings
- Integrated stroboscope
- Laser pointer
- Infrared thermometer
Ultraprobe 15000 integrated functions
Built-in functions to do spectrum analysis, take pictures, record temperature readings, all with a simple touch!
UE Systems development engineers have been working on a super detection system that combines the most advanced technology with every known plant inspection requirement in order to create a complete ultrasonic laboratory for condition monitoring.
- Touch screen technology
- Plan and review routes. Records images and sounds in the instrument’s memory
- Multiple on-screen data displays: dB / temperature / spectrum analysis
- Take temperature readings with infrared thermometer
- Determine and store the RPM of an active bearing with the integrated Strobe add-on.
- Analyze conditions with the integrated spectrum analyzer
- Test point photography with the integrated camera
- Identifies locations with the laser pointer
- Alarm group review and report generation
- Stores data, sound recordings and images
- Review historical record data
Ultrasound Applications and Programs
- Setting up bearing data collection routes; analyzing and creating lubrication routes

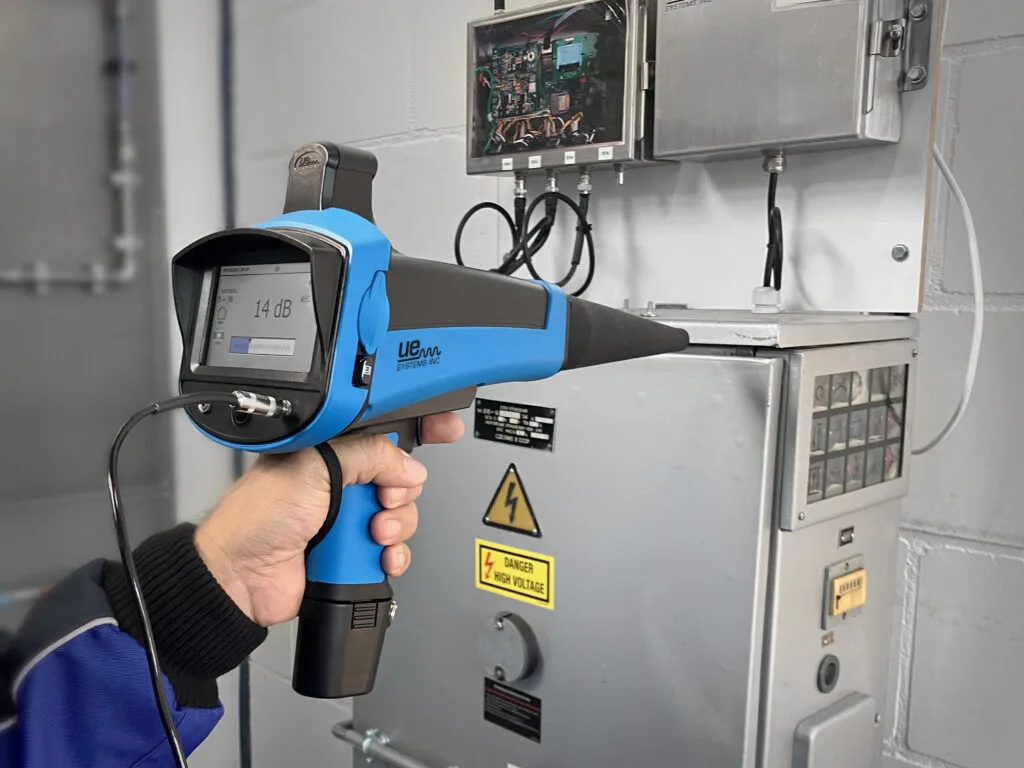

- Inspects electrical systems for faults, analyzes on-site and report
- Inspects defective steam traps
- Find leaks and report costs per leak with DMS reports
Why choose the Ultraprobe 15000?
- Allows all possibilities to inspect, report and analyze with ultrasonics
- Easy and quick to navigate with touch screen operation
- Integrated functions for data review and spectrum analysis at the inspection site
- Ideal for data collection, targeting and troubleshooting programs
- Comes with licensed software (DMS) to efficiently manage and report active status
Software Ultratrend DMS
Ultratrend DMS is UE Systems’ data management software. Useful for digital Ultraprobe or 4Cast monitoring system, DMS allows you to store, manage and analyze inspection data. It supports all Ultraprobe applications, from bearings and leakage to electrical and steam inspections. Provides comprehensive reports, alarms and graphs.
- Manage your routes
- Upload and download your data via USB connection
- Multiple views of data
- Historical Tables/Spreadsheets
- Trend graphs
- Export databases and reports to Excel
Spectralyser™ software
Spectralyzer is a software that allows you to analyze recorded sounds to accurately diagnose electrical and mechanical faults. It is especially useful for inspecting low speed bearings. Inspectors can perform spectral analysis of sound files, and the spectrum analyzer creates a visual image of the sound. It also provides detailed diagnostics and reports.
- Analyze sound files in FFT series and time series
- Create reports for analysis
- Overlay of historical recordings for comparison
- Electrical fault diagnosis
- Bearing failure calculator for defect confirmation

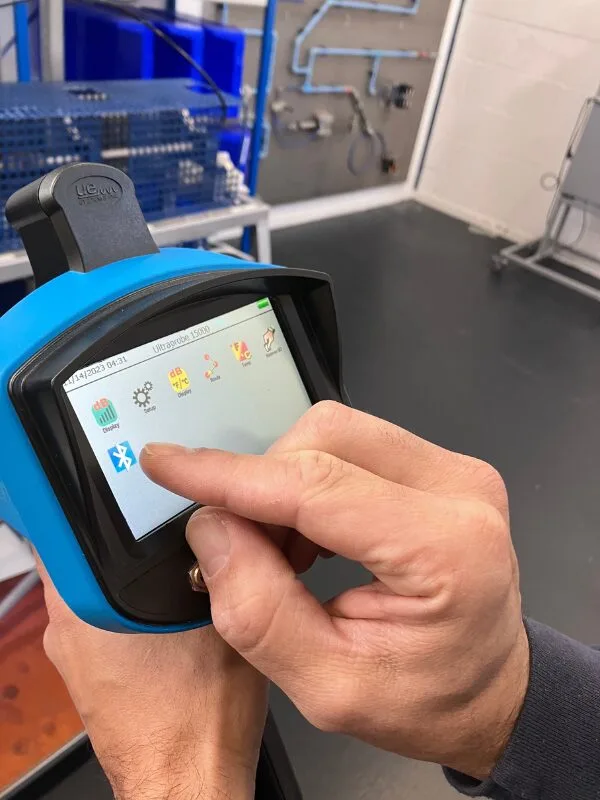

Touch screen operation
The Ultraprobe 15,000 has a durable, rugged and easy to clean touch screen. Digital technology gives you the ability to always be 1 to 3 clicks where you need to be, making this the most efficient ultrasound inspection tool in the world!

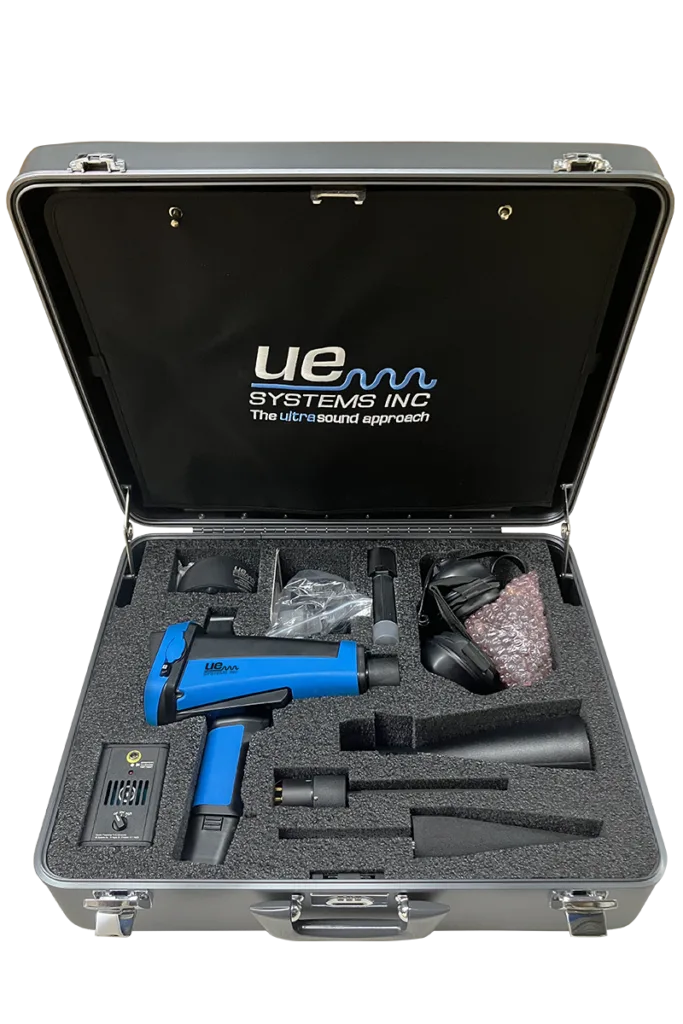

The Ultraprobe 15000 case includes:
- The ULTRAPROBE consists of a touch screen, headphone connection, SD card receptacles and modules. It also has an integrated IR temperature sensor, digital camera, laser pointer, spectralyser and data entry.
- SD card reader
- Industrial noise reduction headphones
- 2 batteries
- Battery recharging kit for instrument and warble tone generator
- Zero Halliburton Aluminum Briefcase
- Warble tone generator with amplitude selection switch for tone test method
- Remote access module (RAM) to be connected to remote sensors

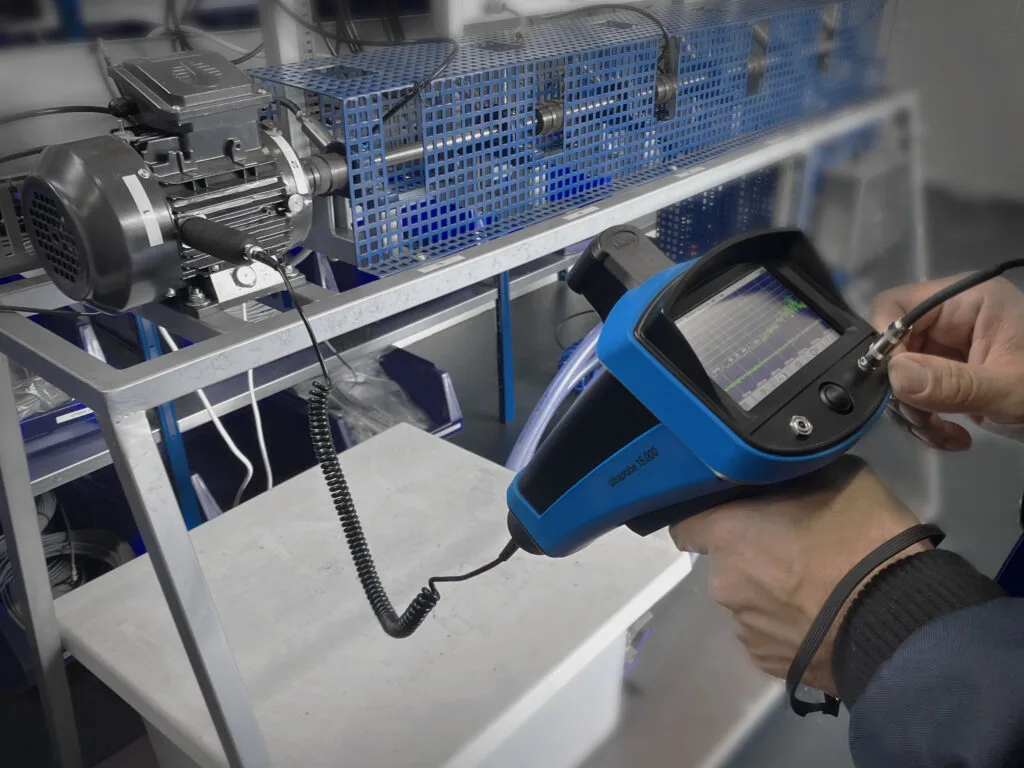

- Magnetically mounted remote sensor (RAS-MT) with cable to maintain consistency when inspecting bearings and oil-cooled transformers.
- Trisonic scanner module for localization of ultrasound in air as pressure, vacuum and electrical emissions
- Rubber focusing attachment to narrow the receiving band of the scanner module and to block surrounding ultrasound
- Contact module for internal ultrasound monitoring of bearings, steam traps and valves
- Module extension kit to increase contact module length up to 78 cm (31 inches)

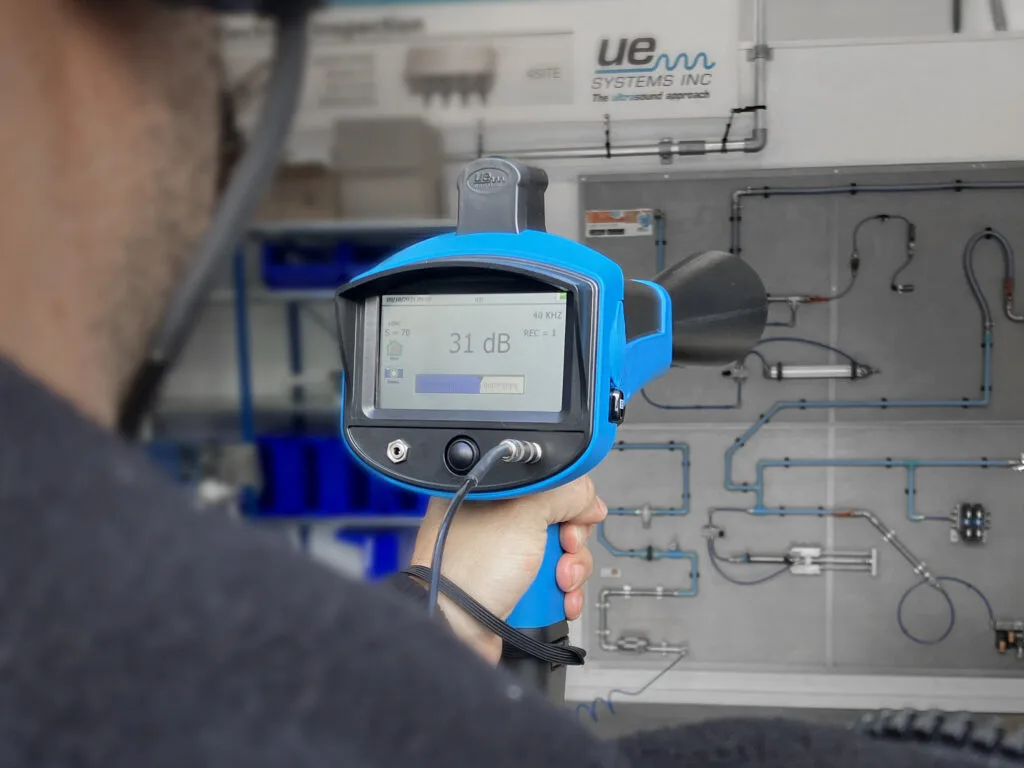

- Long Range Module (LRM-15) for more accurate and extended detection range for finding leaks or electrical emissions
- Belt holster for easy transport
- Complete instruction manual
- Free DMS software license and upgrade!
- Free Spectralyser software license and upgrade!
