PROFESSIONAL DRONES
EVO II Series Drone
A foldable multi-rotor UAV aircraft with features within reach of Industry 4.0.
With a magnesium alloy structure, carbon fiber and autonomy of up to 40 min. Our Autel Robotics drone can work at altitudes up to 7000 meters above sea level and wind resistance Level 8 with winds up to 68Km/h.
In order not to miss any detail, they are equipped with a camera with a 1″ SONY CMOS sensor and 6K resolution in order to obtain the most information when capturing professional images with unparalleled detail.
In case of thermal imaging inspections, the Dual 640T Radiometric 640×512 IR resolution camera with a temperature range from 0° to 550°C and 1-16X zoom and a powerful IR thermal analysis software PC_Tool.

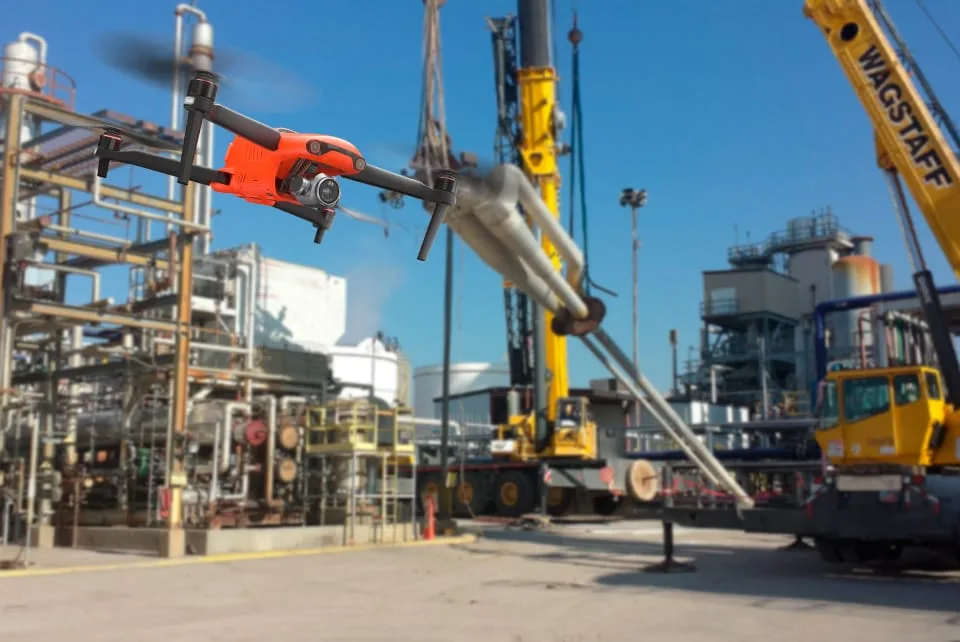

Field applications
We help industries by offering aerial inspection services in difficult to access infrastructure.
- Oil & Gas (refineries, pipelines, offshore platforms).
- Open pit mining.
- Shipping operations (maritime transportation: cargo, fishing, passengers).
- Construction.
- Electricity generation (wind farms, photovoltaic, solar thermal, thermal power plants).
Infrastructure investment monitoring is one of the main applications of drone technologies in the industry.
Other uses of Drone Inspection services:
- Aerial inspections of power lines/cables.
- Aerial inspections of critical infrastructure.
- Aerial inspections of generation systems
- Aerial inspections of solar panels.
- Gas pipeline inspections.
- Drone inspection of cell phone towers, seaports and other heavy industries.
Our Drones

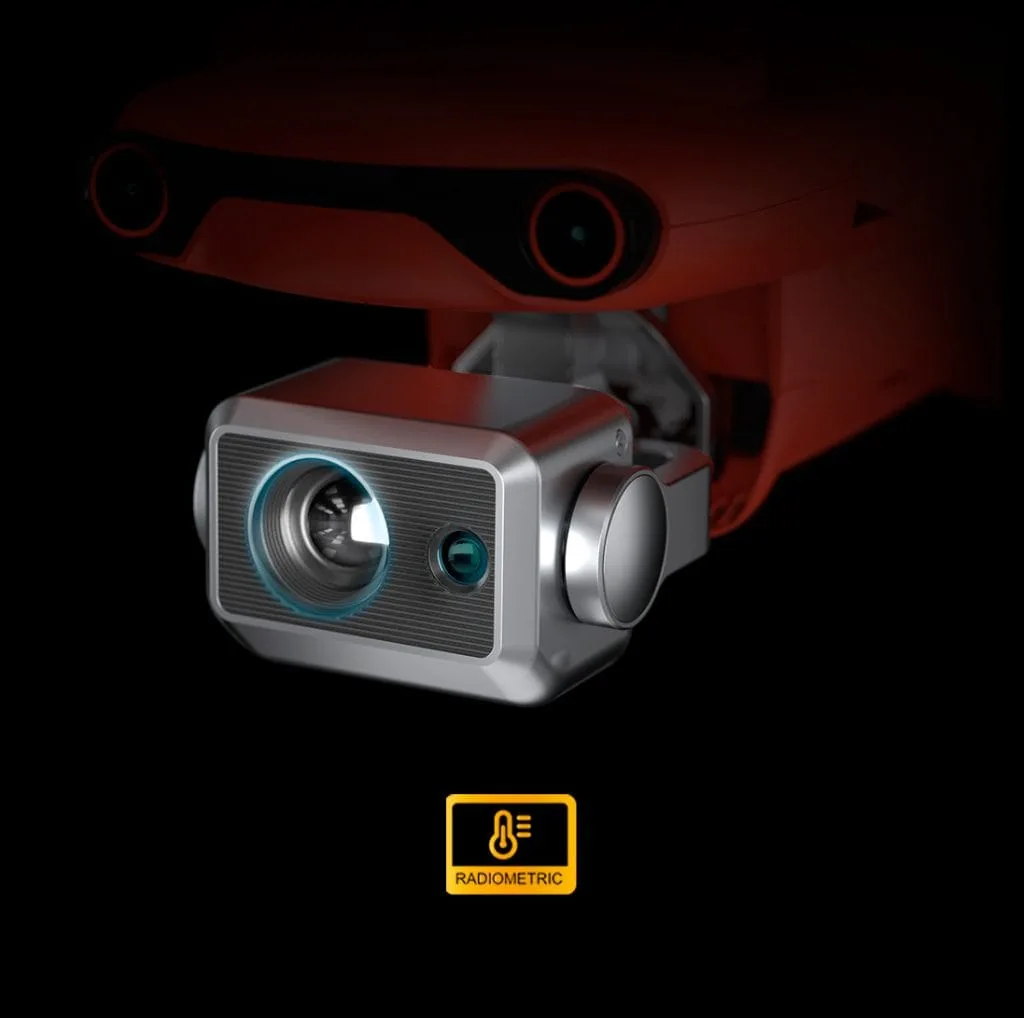

Dual cameras for accurate temperature measurement
The EVO II Dual 640T RTK drone is equipped with a high-resolution thermal imager and an 8K visible light camera, allowing it to capture highly detailed images for optimal viewing.
Accurate temperature measurement
The EVO II Dual 640T RTK can accurately detect heat sources within a distance of 6 to 49 feet. By taking advantage of the infrared temperature measurement compensation algorithm, the 640T RTK can regulate temperature deviations within 37 degrees Fahrenheit.
High resolution thermal imaging sensor
The EVO II Dual 640T RTK has a 13 mm focal length combined with a 640×512 thermal imaging sensor and an 8K ultra-high definition visible camera. Together, these sensors provide you with dual vision to give you the crisp, clear images you need to accomplish your missions.
EVO 2 Dual Camera

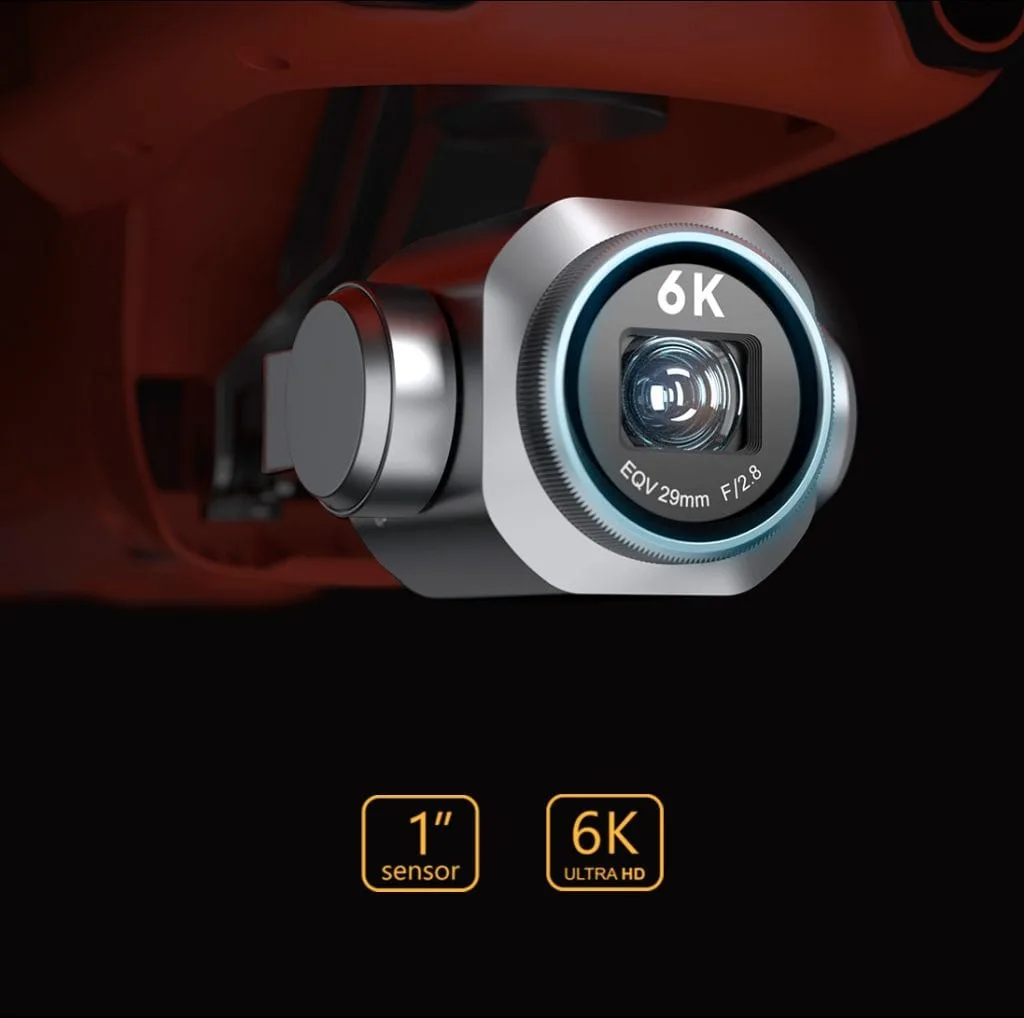

Professional Camera
The Drone EVO II Pro has a high dynamic range and powerful low-light performance, allowing users to capture clear images without losing detailed information.
6K Ultra HD video
The ultra-high-definition lens with 6K resolution, backed by a 1-inch sensor, makes it easy to achieve professional shooting results.
Ideal For Everything
The 1-inch CMOS sensor along with 20 MP gives you the versatility to capture the best images in a variety of mission scenarios.
EVO 2 Pro Camera

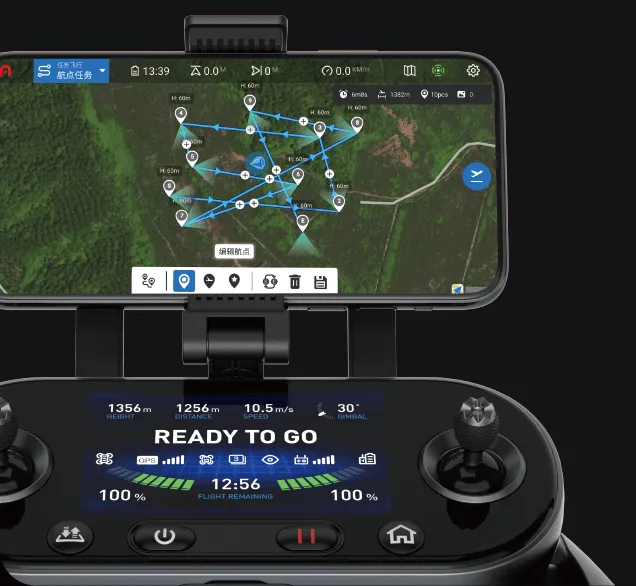

Flight Missions
Automate the tasks to be performed by creating customized flight plans to obtain the desired information automatically.
We will be able to configure parameters such as height, speed, equipment action and more in a designated area.
Once our flight mission has been created, we have the option to save it to reuse it when necessary.
For repeatable data acquisition missions, you can record the drone’s previous firing positions. All gimbal, camera and aircraft movements will be replicated, producing a complete record of the entire mission.
Flight Missions – Autel Explorer

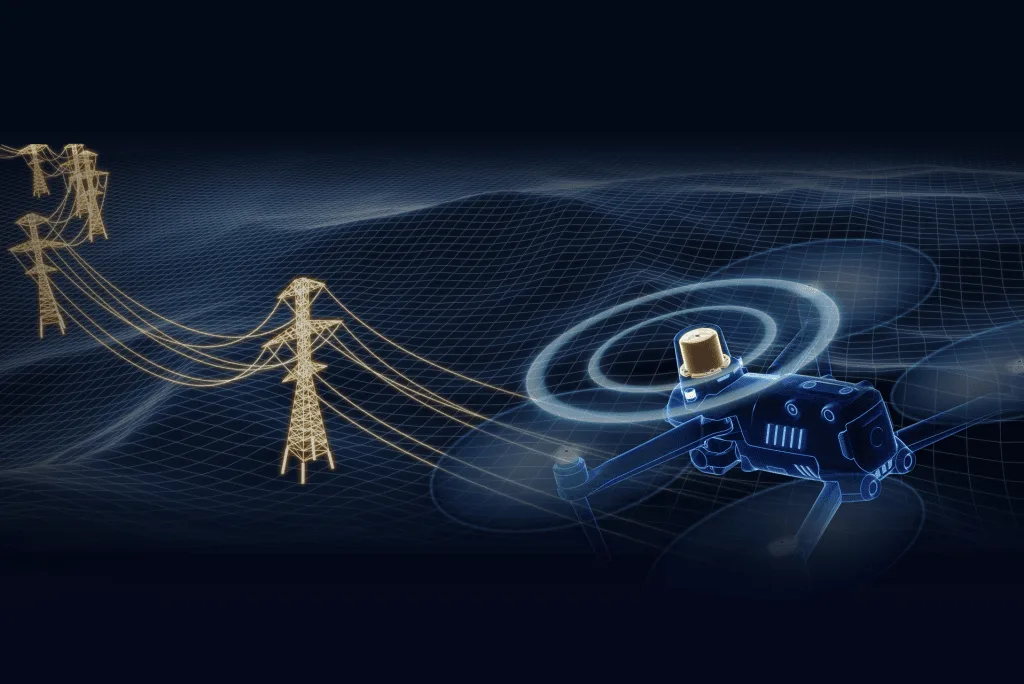

Drone EVO II RTK Series
The RTK system is the precision obtained in terms of its geographical location throughout the flight.
In addition to providing centimeter accuracy, the RTK system provides protection from possible interference from radio frequencies (RF) and electromagnetic fields (EMF).
This type of interference occurs when we fly our aircraft close to high and medium voltage lines, radio towers, large metallic structures, antennas, etc.
Electromagnetic interference-free flights with the RTK module

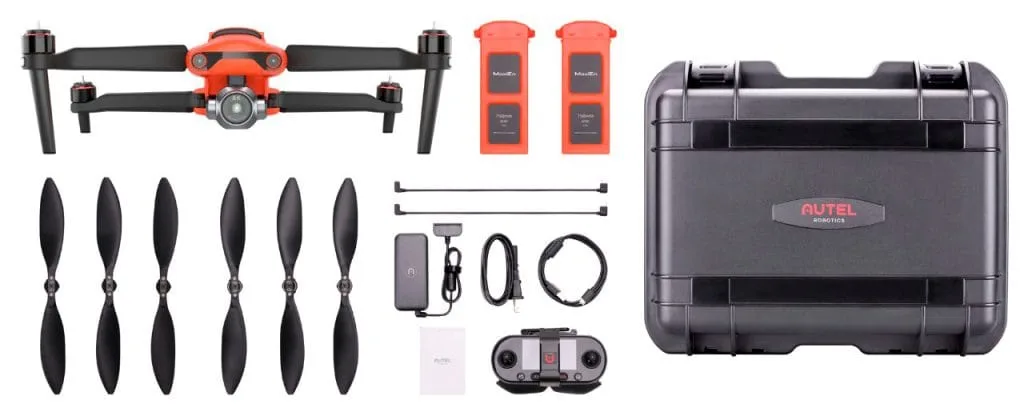

In The Box
EVO II SERIES
- 1 Aircraft with Pro 1″ camera
- 2 Batteries 7100 mAh
- 1 Remote Control
- Connecting Cables
- Charger
- Power Cable
- 32GB MicroSD memory
- Anti-impact hard case
EVO II SERIES RTK
- 1 Aircraft with Dual 1/2″ and 640 x 512 IR camera
- 2 Batteries 7100 mAh
- 1 Remote Control
- Connecting Cables
- Charger
- Power Cable
- 32GB MicroSD memory
- Anti-impact hard case
